Customer background:

A distribution warehouse in Norway were having issues that how to rise the water tank to different heights according to their actual need. They need to use the water from this water tank at 900mm, 2550mm, 3050mm, 3550mm, 4050mm, total five different height. In addition, the weight of this water tank is more than 6000kg, it is hard to rise the water tank. The solution to the problem was provided by our Spain agent Mr. Tysonher that installed hydraulic stationary scissor lift table of the model FSL6-4.05. Now when end user want to use the water tank, they just press button of display panel, the water tank will be arrive to the corresponding height immediately. Have to say, our scissor lift platform help customer greatly improved work efficiency and saved work costs.

Customer request and solution:

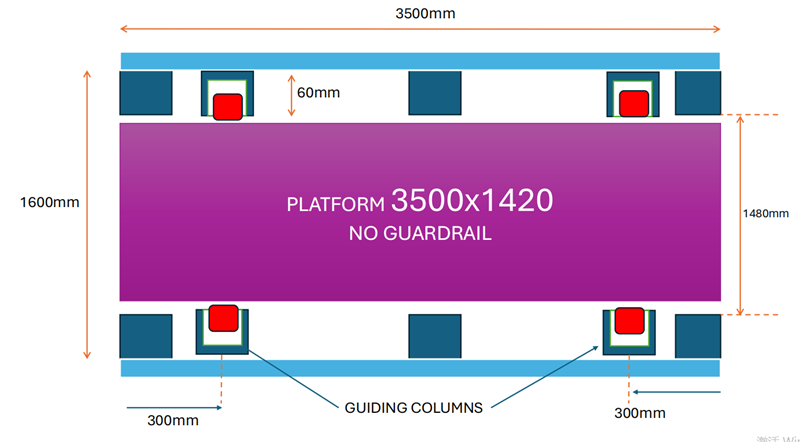

As customer want to install this cargo lift in indoor, and there are six pillar in each corner, so our scissor lift table needed to make the most of the available space and avoid the annoying columns at the customer site. And we also added mechanical blocking device for customer, which can make sure the platform always keep in same level with each floor, don’t sink.

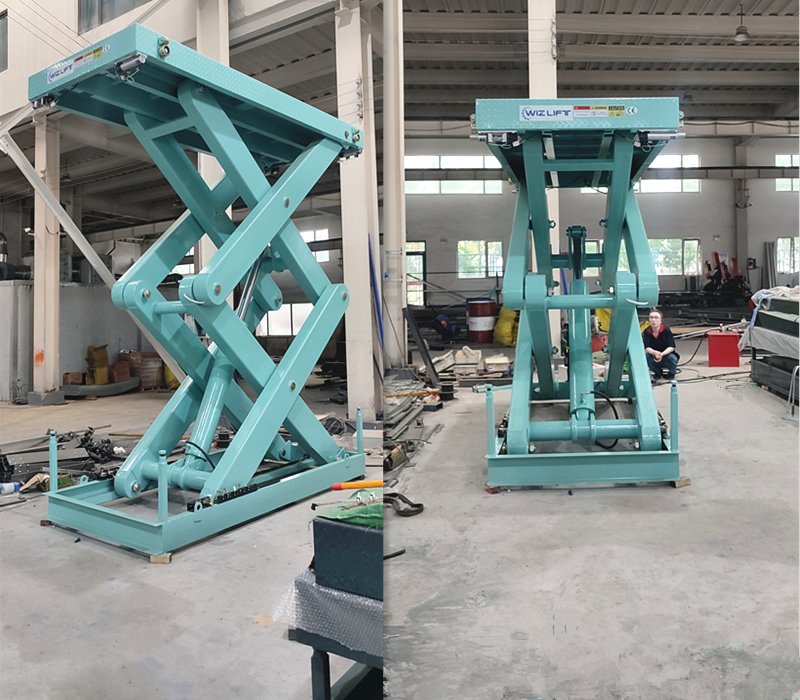

Main details of scissor goods lift

Lifting height: 4050mm

Load capacity: 6000kg

Platform size: W1420*D3500mm

Loading and unloading direction: 1420mm

Power: 7.5kw silent motor

With 5 stops

Closed height: 900mm

Total height: 4950mm

Color of whole machine: RAL6034

Without pit, will install on ground directly

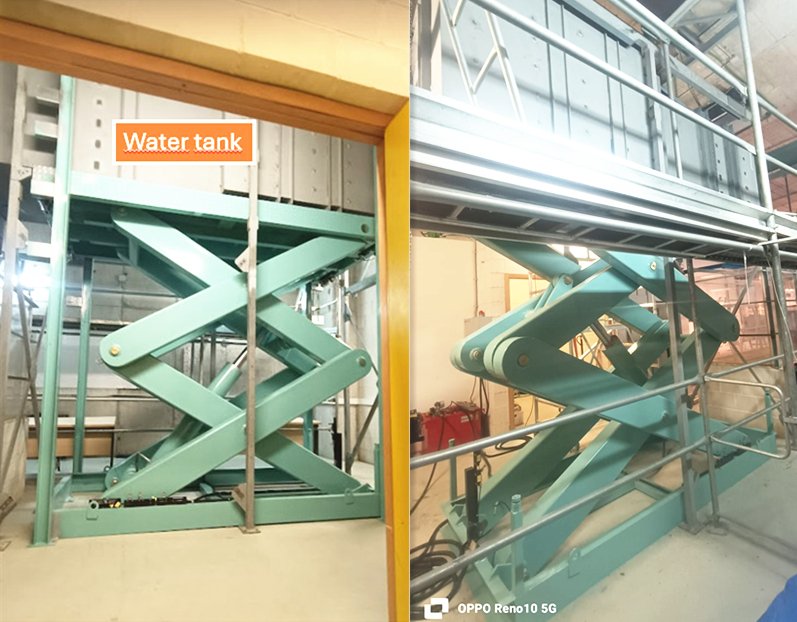

Customer Feedback photos:

“This freight lift platform has worked well, and the work platforms are used daily by our operators,” says end user Mr. Mihael, who was the project manager for the work on the new platforms. “We are really satisfied.”

What is the appliction of scissor lift ?

The scissor lift table is often used as a means for material handling directly on the production floor or as a lorry loader outdoors at a loading dock. With a variety of performances and models, not to mention a load capacity from 0.5t-100ton, there is a scissor lift table for every need. It is not just different industrial companies that are major users of our scissor lift tables – we also deliver to distribution centers, warehouses, stores and other service establishments.
